SwiftUI List

After having struggled for a few days with various issues of SwiftUIs List on macOS, I decided to write down my personal journey as a “GitHub article”.

The List view in SwiftUI is very powerful and can be easily applied. But as soon as you start to use them you will encounter some quirks.

Basics

In its simplest form a List view can be created in only three lines:

List(data) { element in
    Text(element.text)
}

There are many more List initializers available (see official documentation), some based on integer ranges, others based on data with associated identifier. In general it is good practice to have the elements conform to Identifiable, i.e. it has an id property which is unique within the collection, as our DataWrapper example below.

struct DataWrapper: Identifiable {
    let id = UUID()
    var text: String
}

Looking at the images below, we confirm that on iPhone this really is the simplest form of a list we see in many apps.
On macOS the list looks even bolder: there are no visible dividers.

Minimal List on iPhone Minimal List on macOS

The full source-code of those views can be found in Shared/MinimalList.swift.

Adding Row Selection

If we want to have the possibility to select a row, we have to define a new state variable to store ID of the selected row and add the selection: parameter to the List initializer:

@State private var selection: UUID?

List(data, selection: $selection) { element in
    Text(element.text)
}

On macOS this addition already enables the selection handling. We can now select a row by clicking it and also move the selection with the arrow keys.

Minimal List on macOS with selected row

On iPhone we won’t see any difference yet. This is due to the fact, that the row selection circles are only shown if the list is in edit mode. Normally a user enters into edit mode by tapping the “Edit” button (which would be found in the toolbar). But for our purpose it is sufficient to simulate the fact that the edit mode is activated by adding the following line at the end of our List content (or any parent view):

.environment(\.editMode, .constant(.active))

Minimal List on iPhone with selected row

Allow Multiple Selections

To enable multi-selection we simply have to adjust our state variable: Instead of defining a variable for a single selection, we define it as a Set of IDs:

@State private var selection = Set<UUID>()

What I really like about the macOS implementation: Out-of-the-box it supports all the possible selection modes using keyboard modifiers to ease selecting multiple rows (using Shift+click) and add/remove single rows to the existing selection (using CMD+click). Selecting multiple rows with using the arrow keys is also possible.

Minimal List on macOS with multiple rows selected Minimal List on iPhone with multiple rows selected

Adding Row Reordering

Another nice feature is the built-in support for moving rows within the list by simply adding the .onMove(perform:) modifier.
As this modifier is not applicable to the List view but to the ForEach struct we have to rewrite our basic list to use ForEach to iterate over the elements:

List(selection: $selection) {
    ForEach(data) { element in
        Text(element.text)
    }
    .onMove(perform: { indices, offset in
        withAnimation {
            data.move(fromOffsets: indices, toOffset: offset)
        }
    })
}

As you can see, we use the Arrays move method which takes in the parameter fromOffset, an IndexSet with the indices of the selected rows, and toOffset, with the target row where they have to be inserted. Just by adding this action, we enhanced our list with reordering functionality.

On macOS the availability of the reordering functionality is not immediately visible to the user, but it is commonly known that one can select multiple lines and then drag & drop them to the desired destination. Exactly how it works here.

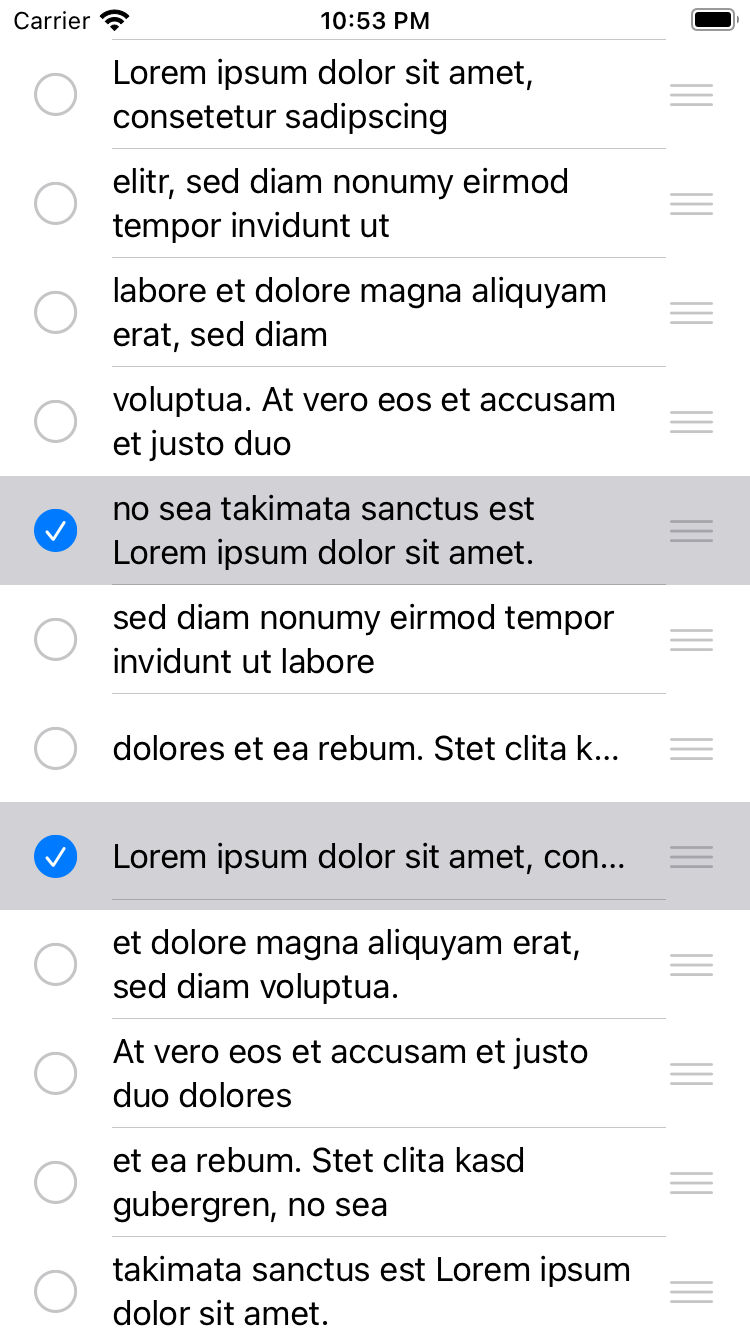

On the iPhone reordering handles are showing up on the right side of each line. They are independent of the selection. As a consequence, it is only possible to move one line at a time.

List moving multiple rows on macOS List on iPhone with row reordering UI

Adding Swipe to Delete

After having split the basic List into a List container view and a ForEach iterator struct, it is an easy exercise to add swipe to delete as we have to add only another modifier to the ForEach struct: .onDelete(perform:)

List(selection: $selection) {
    ForEach(data) { element in
        Text(element.text)
    }
    .onDelete(perform: { indices in
        withAnimation {
            data.remove(atOffsets: indices)
        }
    })
}

When testing this, it becomes immediately visible that swipe to delete is really intended to be applied to a single row: it ignores any selection. Even more: on iPhone it basically does not work as long as the list is in edit mode. This means selection & reordering are mutually exclusive to “swipe to delete”. If you want to provide a deletion functionality based on the current selection, you will have to add a custom delete button to the toolbar.

List deleting rows on macOS using 'swipe to delete' List deleting rows on iPhone using 'swipe to delete'

Adding Groups/Sections

To group similar data visually within the list, it is possible to create custom sections with header and footer views. While scrolling through a long list the current header will stay visible.

List(selection: $selection) {
    Section(header: Text("Top 3"),
            footer: Text("All this gibberish can be ignored, even though it seems to be some latin dialect it is absolute nonsense.")
                .font(.caption)
    ) {
        ForEach(data.prefix(3)) { element in
            Text(element.text)
        }
    }
    Section(header: Text("Rest")) {
        ForEach(data.dropFirst(3)) { element in
            Text(element.text)
        }
    }
}

But be aware: you cannot move elements between different sections!

As you can see on the screenshot below, the section header and footers on macOS Big Sur are easily overlooked in the default styling. On the iPhone we see again the commonly known grey style for headers (on iOS 14).

List with sections on macOS List with sections on iPhone

The full source-code for this view can be found in Shared/BasicList.swift.

Applying list styles

The list can be styled using one of the following ListStyles

List styles have to be applied onto the List view by adding the modifier .listStyle() with the appropriate style. Before Swift 5.5 you had to instantiate the list style using InsetGroupedListStyle(). But with Swift 5.5 better inference for type erased generics has been added and we can now write .insetGrouped.

Below are a few screenshots for different list styles on iPhone.

List with PlainListStyle on iPhone List with InsetListStyle on iPhone List with GroupedListStyle on iPhone

List with InsetGroupedListStyle on iPhone List with SidebarListStyle on iPhone

List Row Background

Chapter 1: The nightmare begins

When you start to use List in more and more sophisticated ways, you will sooner or later feel the desire to change the background color of a row. First you will try to use .background(Color.orange) on the row content, but you will then realize that this will only affect the content drawn into the “cell”. There is still white space around your content which is not drawn by your lists row content. This is especially visible when row selection is enabled, as shown below:

Text(element.text)
    .background(Color.orange)

List content background not covering complete row

This is where the modifier .listRowBackground() comes into play. By using .listRowBackground(Color.orange) on your row content, you will see the white space will disappear, but you will also find that it does not properly work with selection: our row background is now drawing over the selection box drawn by macOS.

Text(element.text)
    .listRowBackground(Color.orange)

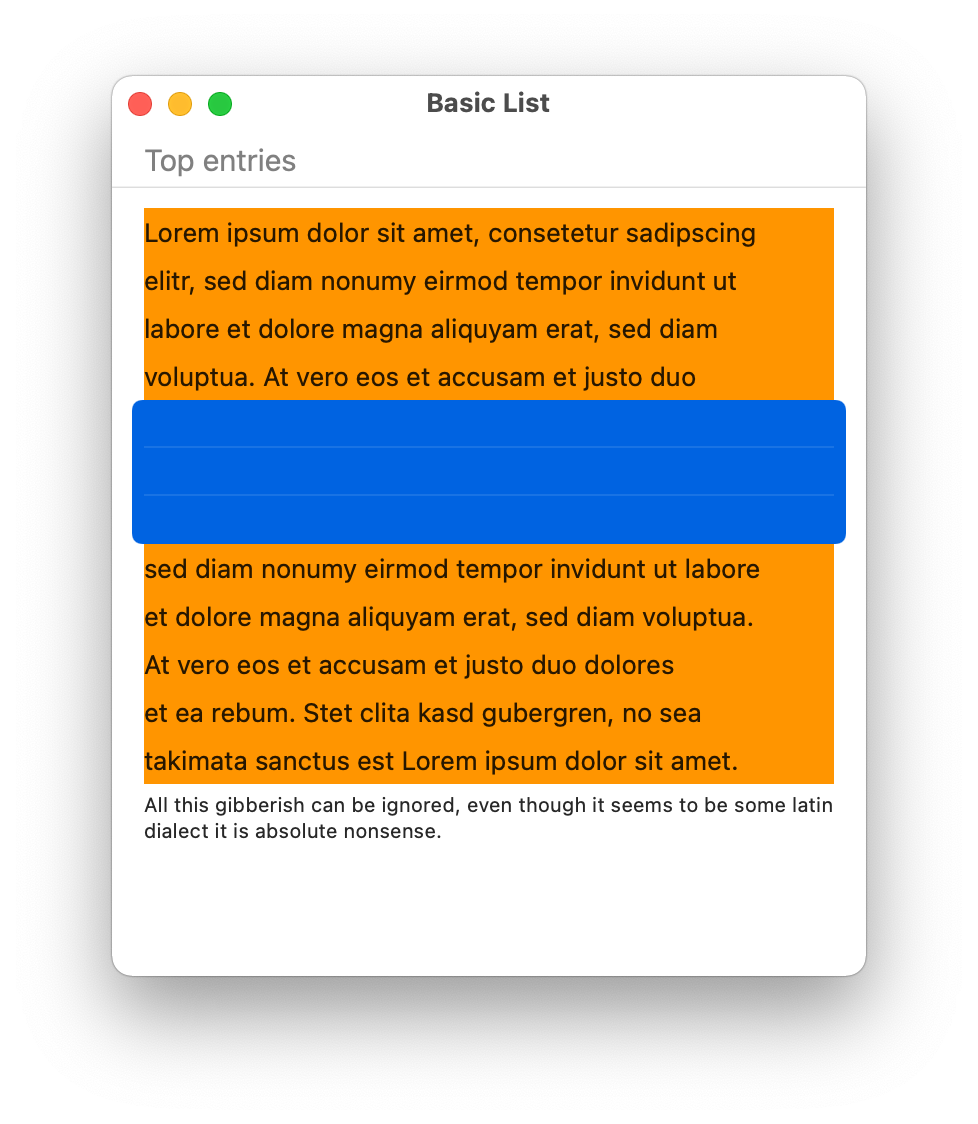

List row background with custom color, but drawing over selection color

A possible workaround which comes to mind: not drawing the background color when the row is selected!

Text(element.text)
    .listRowBackground(Group {
        if selection.contains(element.id) == false {
            Color.orange
        }
    })

But as you see below, that’s not supported either. Now only an empty selection is drawn without our actual row content!

List row background not using color on selected rows

The fix for this problem: use Color.clear when the row is selected, otherwise Color.orange.

Text(element.text)
    .listRowBackground(Group {
        if selection.contains(element.id){
            Color.clear
        } else {
            Color.orange
        }
    })

Finally: our background color is correctly applied and does not interfere with the selection!

List row background using custom background color and correct selection color

As we have now fixed the list selection, we try to reorder some rows again. As shown below, this feature is now broken too: moving rows makes them randomly resize!

List row background using custom background color and correct selection color

The nightmare continues

So it seems that while dragging a row around the height of it will change randomly. To fix this, we can add some code to limit the maximum row height: .frame(maxHeight: 16). 16 is in the case of macOS the magic number which fits the default font. But by fixing the height, we break (once again) some great SwiftUI built-in feature: the automatic wrapping of long text in multiple lines. Now we limit artificially all rows to be of single line height and they are going to be truncated when the width of the window shrinks.

So this is not an acceptable fix. Our goal is: while and after being dragged around, the view should keep its initial size. This means we want to have the view resize “naturally” as it would normally do, but inhibit the sudden random increase of the size after dragging.
A way to address this problem: measure the size of the row using GeometryReader and keeping this information to limit an increase of the height later when it tries to resize “unnaturally”.
To use GeometryReader properly I suggest we move the row view code into its own Row view struct and then observe the size changes for a moment:

struct Row: View {
    let text: String
    let isSelected: Bool

    //@State private var rowSize: CGSize?

    var body: some View {
        Text(text)
            .listRowBackground(Group {
                    if isSelected {
                        Color.clear
                    } else {
                        Color.orange
                    }
                }
            )
            .background(GeometryReader { proxy in
                let _ = handleSize(proxy.frame(in: .local).size)
                Color.clear
            })
            //.frame(maxHeight: rowSize?.height)
    }

    private func handleSize(_ size: CGSize) {
        print("size", size, text.prefix(5))
        //if rowSize != size {
        //    DispatchQueue.main.async {
        //        rowSize = size
        //    }
        //}
    }
}

As you can see, I’ve commented all code related to maintaining the rowSize @State property and using it for row height limitation. We will now look at how the row’s resize after they have been dragged around:

List using custom background along with size printed for debugging List using custom background along with size printed after dragging a row

Highlighted in the screenshot above, we see that the rows width (?!) suddenly changes to 10.0 just before the height is dramatically increased. It’s also visible in the screenshot, that not only the row dragged around is suffering the adjustment, but also the others which are moved around. It seems as if all rows would have reasonable sizes at the end of the process, but the row background stays larger than what is needed!
As a next step, we uncomment the code for our rowSize state and the height limitation and modify the handleSize method to ignore all size changes with a width of 10, as shown below:

private func handleSize(_ size: CGSize) {
    print("size", size, text.prefix(5))
    if rowSize != size && size.width != 10 {
        DispatchQueue.main.async {
            rowSize = size
        }
    }
}

Juhu, this fixes the random height changes of the row we have seen before!

But as written earlier: limiting the height to a specific value will inhibit the automatic adjustment of the row, if there are space constraints. For example when the window width is reduced, some of the lines of text would start wrapping onto two lines and therefore want to increase the height. That is currently not possible anymore!

So we have to add another small fix: we have to force our Text view to always use its ideal size vertically (=height). This can be done by adding the .fixedSize(horizontal: false, vertical: true) modifier to our Text element.

As shown below, we have now reached our goal for this chapter: A List with a custom background color and working standard behavior like row resizing, selection and reordering!

List row background using custom background color and correct selection color

The full source-code for this view can be found in Shared/CustomizedList.swift.

That’s all so far on this journey. I hope you liked it…

If you have thoughts and/or comments you can reach me also on Twitter.
